15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment

Όλες οι κατηγορίες

Ελεγκτής αφής

Επικοινωνήστε μαζί μας

Miss. Lin

lily.lb@touchlcdpanel.com

86+ 188 0261 2095

86+ 188 0261 2095

Επικοινωνήστε τώρα

15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment

Ονομασία μάρκας:	LB
Αριθμός μοντέλου:	LBCTP1569880
Τροποποιημένο:	100pcs
τιμή:	To Be Determined
Πληροφορίες συσκευασίας:	Κουτί από χαρτόνι
Όροι πληρωμής:	T/T

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Πιστοποίηση:

Έγγραφο:

Μέγεθος:

15.6 ''

Προϊόν:

Επικάλυψη οθόνης αφής PCAP

Επεξεργασία Επιφανειών:

Αντι-glare

Ελεγκτής αφής:

Ilitek 2511

Σημεία αφής:

Δάχτυλο 10 πόντους

Χρωματιστό χρώμα:

μαύρος

Πλάτος στεφάνης:

16 mm κάθε πλευρά

Συνολικό πάχος:

2,9 χιλιοστά

Μετάδοση:

Χρόνος απόκρισης:

10 ms τυπικά

Supply Ability:

1000pcs Per Day

Περιγραφή του προϊόντος

15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment

Product Description:

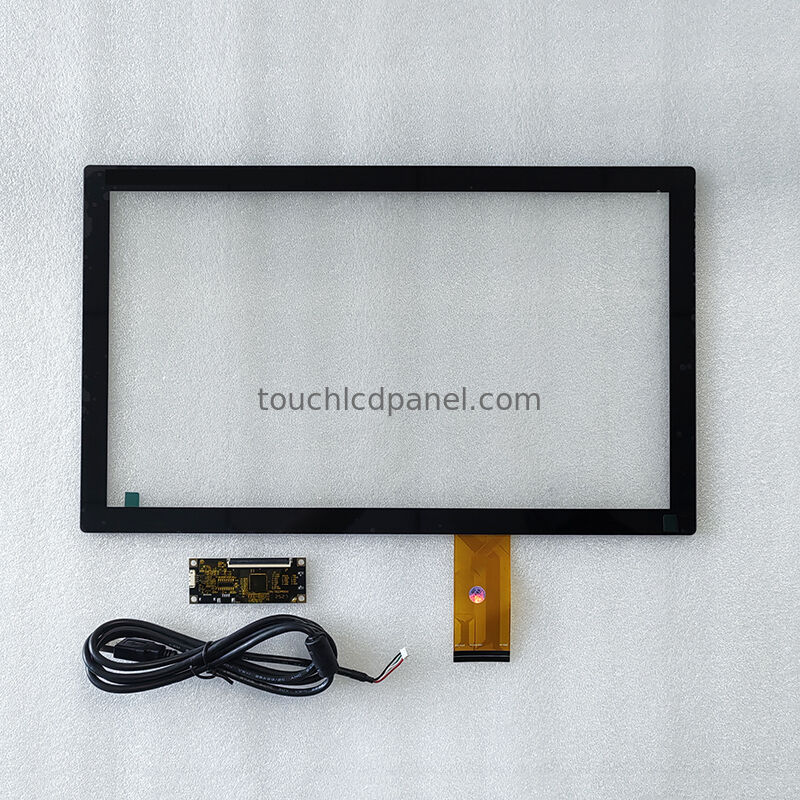

This 15.6-inch PCAP Touchscreen Overlay (Model No.: LBCTP1569880) is a anti-glare tempered glass optically bonded on a ITO touch sensor glass, drived by ILITEK2511 touch controller via USB interface. It supports multi-touch, fast response time of 10ms typically, and plug-and-play on Windows and Android. Engineered with precision and advanced technology, this capacitive touchscreen overlay is perfect for a wide range of applications, from industrial equipment and kiosks to digital signage and interactive workstations.

At the heart of this PCAP touchscreen overlay is the ILITEK 2511 touch controller, a highly reliable and responsive controller known for its excellent performance and stability. The ILITEK 2511 enables accurate and smooth touch detection, supporting multiple simultaneous touch points. This capability transforms the standard display into a multi-touch gesture screen, allowing users to interact using familiar gestures such as pinch-to-zoom, swipe, rotate, and tap. This multi-touch functionality enhances user experience by providing intuitive and fluid control over content, making it ideal for both consumer and professional environments.

Designed with user convenience and durability in mind, the PCAP touchscreen overlay is easy to install and maintain. Its slim profile and robust construction make it a reliable upgrade for existing monitors without compromising on screen clarity or brightness. The capacitive touchscreen technology used in this overlay provides excellent sensitivity and accuracy, supporting fast and precise touch responses. This ensures that every tap, swipe, and gesture is registered instantly, delivering a smooth and seamless interaction experience. This product seamlessly combines advanced touch technology with elegant design, ensuring superior performance in various applications and environments.

Features:

Narrow Black Bezel: 16mm bezel each side in black, for 15.6'', 16mm can be regarded as narrow bezel for flush mounting.
AG Surface Treatment: Anti-glare, it helps reduce the environmental glare and improves the viewing experience.
GG Layers: Front Glass On Sensor Glass
ILITEK touch controller: USB interface, plug-and-play on Windows and Android

Technical Parameters:

Product	PCAP Touchscreen Overlay
Touch Controller	ILITEK 2511
Touch Points	10-points Finger Touch
Layers	Front Glass On Sensor Glass
Transmittance	>86%
Surface Treatment	Anti-glare
Bezel Width	16mm Each Side
Front Glass Thickness	2mm
Size	15.6''
Bezel Color	Black

15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment 0

Applications:

The LB PCAP Touch Screen, model number LBCTP1569880, with a size of 15.6 inches, a front glass thickness of 2mm, and a total thickness of 2.9mm, this product offers excellent durability and responsiveness. Equipped with the advanced ILITEK 2511 touch controller, it ensures smooth and accurate touch performance, making it ideal for a wide range of applications.

In retail environments, the LB PCAP touchscreen overlay can be integrated into point-of-sale (POS) systems, self-service kiosks, and digital signage, enhancing customer interaction and streamlining transactions. Its robust construction and high touch accuracy make it a preferred choice over traditional resistive touch panels, especially in high-traffic areas.

In healthcare, this capacitive touchscreen panel provides hygienic, easy-to-clean surfaces suitable for patient monitoring systems and medical devices. The responsive touch capabilities improve usability for healthcare professionals who require precise control and fast input.

The LB PCAP Touch Screen is also suitable for industrial applications, where it can replace resistive touch panels in control panels and machinery interfaces. Its enhanced durability and multi-touch support contribute to improved operational efficiency and user experience in demanding environments.

Overall, the LB PCAP Touch Screen LBCTP1569880 is a versatile and reliable solution for anyone seeking to upgrade from resistive touch panels to a modern capacitive touchscreen monitor, combining durability, performance, and ease of use in a sleek 15.6-inch design.
